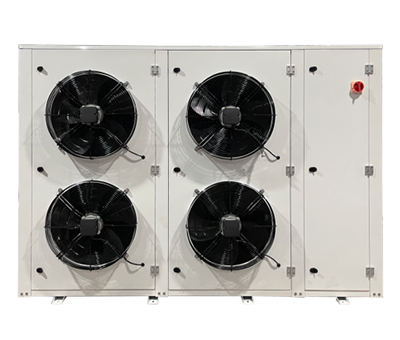

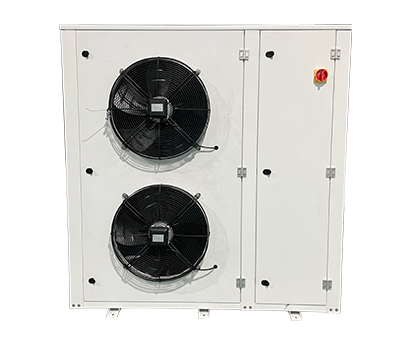

 Box-type Condensing Units















Model
Compressor
Condenser
S(Inch)
D(Inch)
Overall Dimension L*W*H(mm)
Model
HP
Fan Diameter(mm)
Air Flow(m³/h)
Fan Voltage
Power of Fan(W)
Poles
kW
LTO-2DES-3Y
2DES-3Y
3
500
1*6900
220V/1PH/50Hz
1*380
4
10700
7/8"
1/2"
1500*790*970
LTO-2CES-4Y
2CES-4Y
4
500
1*6900
220V/1PH/50Hz
1*380
4
14260
7/8"
1/2"
1500*790*970
LTO-4FES-5Y
4FES-5Y
5
500
2*6900
220V/1PH/50Hz
2*380
4
16000
7/8"
1/2"
1720*940*1570
LTO-4EES-6Y
4EES-6Y
6
500
2*6900
220V/1PH/50Hz
2*380
4
24000
1-1/8"
1/2"
1920*940*1570
LTO-4DES-7Y
4DES-7Y
7
500
2*6900
220V/1PH/50Hz
2*380
4
24000
1-1/8"
1/2"
1720*940*1570
LTO-4CES-9Y
4CES-9Y
9
500
2*6900
220V/1PH/50Hz
2*380
4
32000
1-1/8"
5/8"
1720*940*1570
LTO-4VES-10Y
4VES-10Y
10
500
2*6900
220V/1PH/50Hz
2*380
4
32000
1-1/8"
5/8"
1720*940*1570
LTO-4TES-12Y
4TES-12Y
12
500
2*6900
220V/1PH/50Hz
2*380
4
40000
1-3/8"
5/8"
1720*940*1570
LTO-4PES-15Y
4PES-15Y
15
500
4*6900
220V/1PH/50Hz
2*380
4
47360
1-5/8"
7/8"
2200*940*1570
LTO-4NES-20Y
4NES-20Y
20
500
4*6900
220V/1PH/50Hz
1*380
4
59200
1-5/8"
7/8"
2200*940*1570
LTO-4FES-3Y
4FES-3Y
3
500
1*6900
220V/1PH/50Hz
1*380
4
10700
7/8"
1/2"
1500*790*970
LTO-4EES-4Y
4EES-4Y
4
500
1*6900
220V/1PH/50Hz
2*380
4
14260
1-1/8"
1/2"
1500*790*970
LTO-4DES-5Y
4DES-5Y
5
500
2*6900
220V/1PH/50Hz
2*380
4
16000
1-1/8"
1/2"
1720*940*1570
LTO-4CES-6Y
4CES-6Y
6
500
2*6900
220V/1PH/50Hz
2*380
4
24000
1-1/8"
1/2"
1920*940*1570
LTO-4VES-7Y
4VES-7Y
7
500
2*6900
220V/1PH/50Hz
2*380
4
24000
1-1/8"
1/2"
1720*940*1570
LTO-4TES-9Y
4TES-9Y
9
500
2*6900
220V/1PH/50Hz
2*380
4
32000
1-3/8"
5/8"
1720*940*1570
LTO-4PES-12Y
4PES-12Y
12
500
2*6900
220V/1PH/50Hz
2*380
4
32000
1-3/8"
5/8"
1720*940*1570
LTO-4NES-14Y
4NES-14Y
14
500
2*6900
220V/1PH/50Hz
2*380
4
40000
1-3/8"
5/8"
1720*940*1570
LTO-4JE-15Y
4JE-15Y
15
500
4*6900
220V/1PH/50Hz
2*380
4
47360
1-5/8"
7/8"
2200*940*1570
LTO-4HE-18Y
4HE-18Y
18
500
4*6900
220V/1PH/50Hz
2*380
4
59200
1-5/8"
7/8"
2200*940*1570





Model
Compressor
Cooling capacity(W)
Refrigerant
Temperature/ ℃
Model
HP
Evaporating Temperature
-5℃
-10℃
-15℃
-20℃
LTO-2DES-3Y
2DES-3Y
3

7420
6070
4890
3870
R404A
-25℃ ~ +5℃
LTO-2CES-4Y
2CES-4Y
4
19180
7540
6120
4880
LTO-4FES-5Y
4FES-5Y
5
9940
8130
6580
5250
LTO-4EES-6Y
4EES-6Y
6
12510
10200
8220
6520
LTO-4DES-7Y
4DES-7Y
7
15220
12440
10040
8000
LTO-4CES-9Y
4CES-9Y
9
18520
15080
12120
9610
LTO-4VES-10Y
4VES-10Y
10
19180
15420
12200
9480
LTO-4TES-12Y
4TES-12Y
12
23300
18810
14990
11730
LTO-4PES-15Y
4PES-15Y
15
26350
21150
16680
12920
LTO-4NES-20Y
4NES-20Y
20
31700
25650
20450
16070





Model
Compressor
Cooling capacity(W)
Refrigerant
Temperature/ ℃
Model
HP
Evaporating Temperature
-20℃
-25℃
-30℃
-35℃
LTO-4FES-3Y
4FES-3Y
3
5250
4120
3170
2380
R404A
-30℃ ~ -15℃
LTO-4EES-4Y
4EES-4Y
4
6690
5240
4020
3010
LTO-4DES-5Y
4DES-5Y
5
8000
6260
4800
3600
LTO-4CES-6Y
4CES-6Y
6
9610
7480
5690
4220
LTO-4VES-7Y
4VES-7Y
7
9480
7190
5280
3710
LTO-4TES-9Y
4TES-9Y
9
11780
9030
6740
4840
LTO-4PES-12Y
4PES-12Y
12
13010
9830
7200
5040
LTO-4NES-14Y
4NES-14Y
14
15950
12240
9140
6580
LTO-4JE-15Y
4JE-15Y
15
19080
14810
11200
8160
LTO-4HE-18Y
4HE-18Y
18
22600
17720
13570
10070
